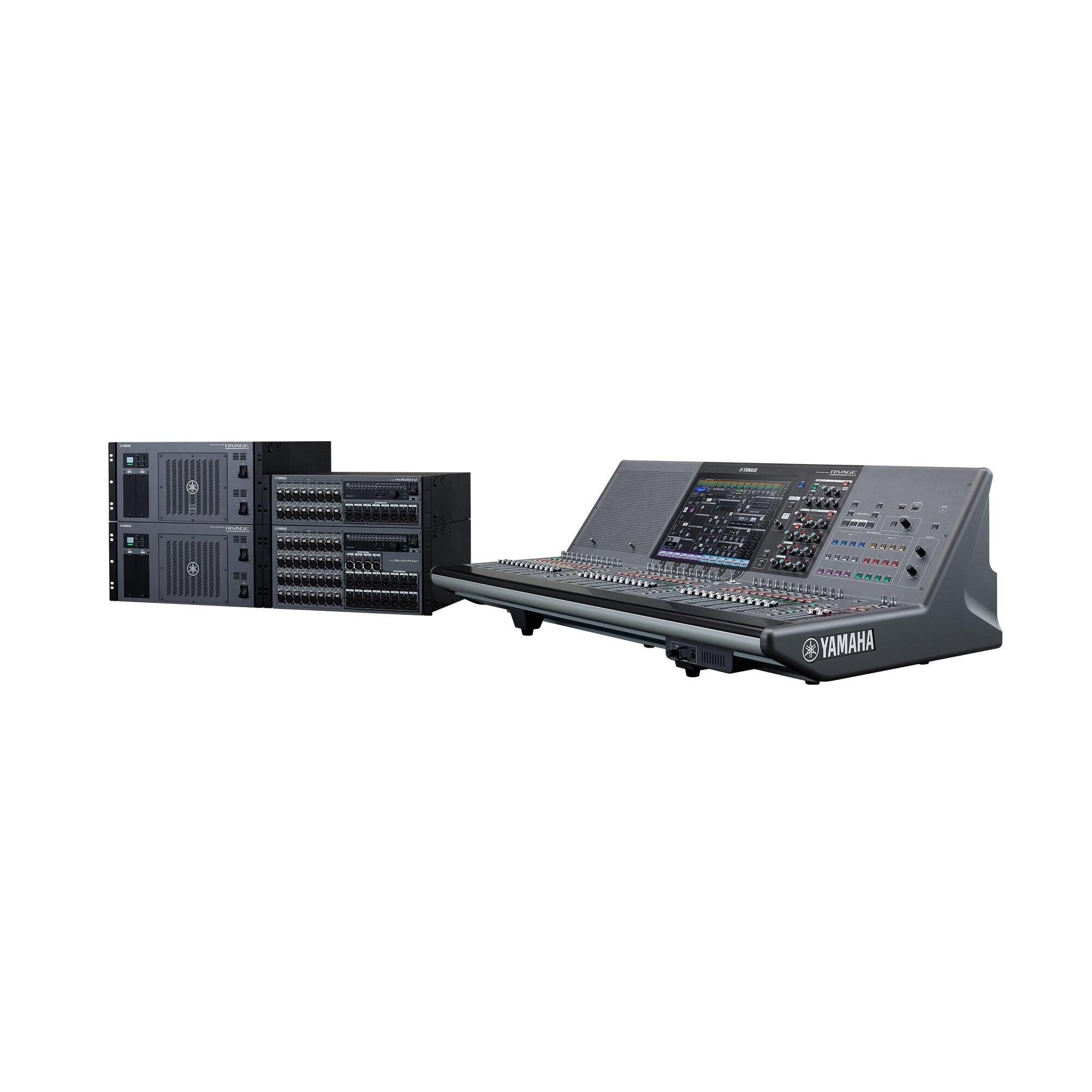

Yamaha Rivage PM3 Dante System - Dante 64/32 IO, 16 AES Out Bundle

Contact our sales team today to discuss your Yamaha Rivage needs!

The RIVAGE PM3 has a simpler single-display interface with 24 User Defined Keys to facilitate access and speed up operation. You still get full RIVAGE PM sonic quality, a full set of features, and 38 physical faders for intuitive hands-on mixing.

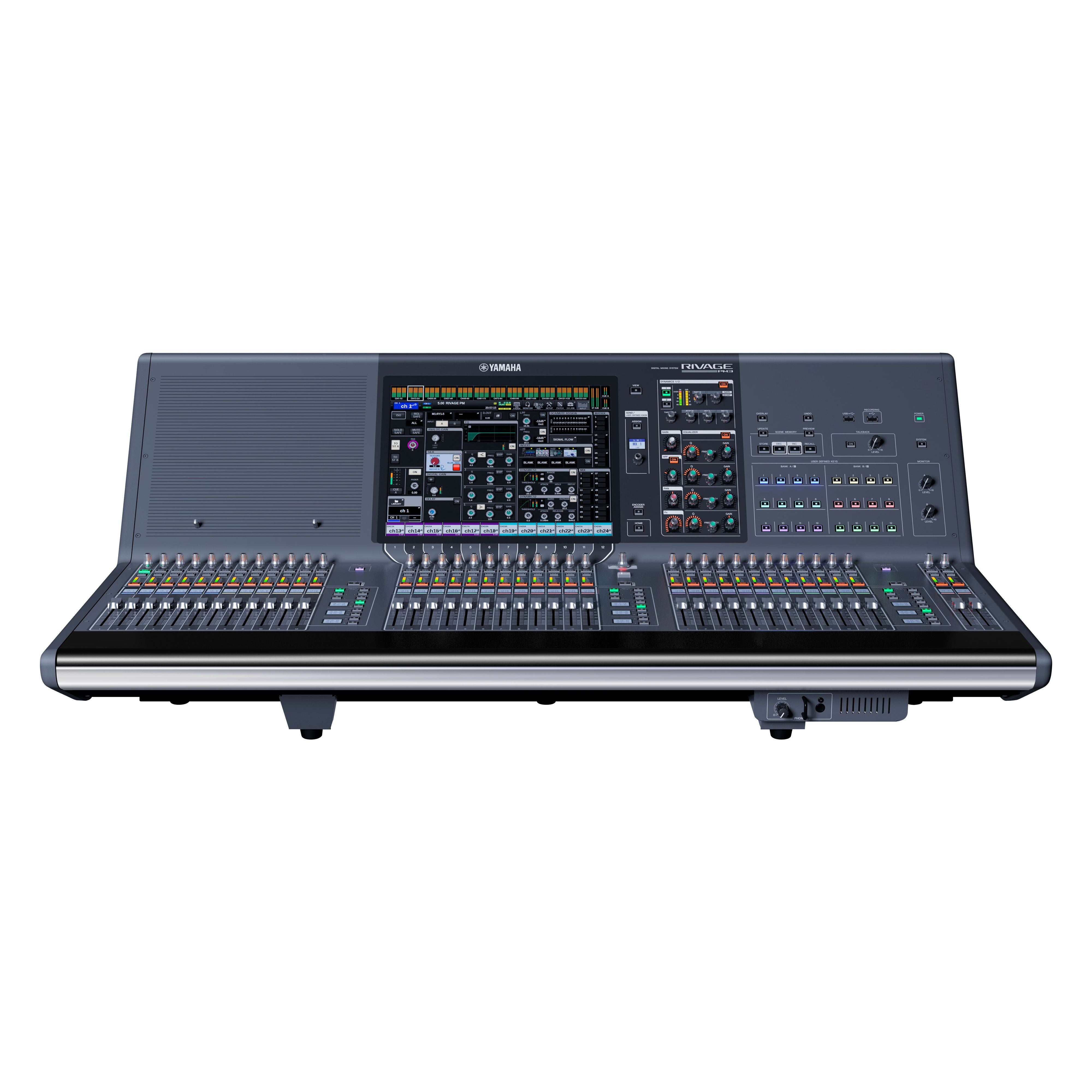

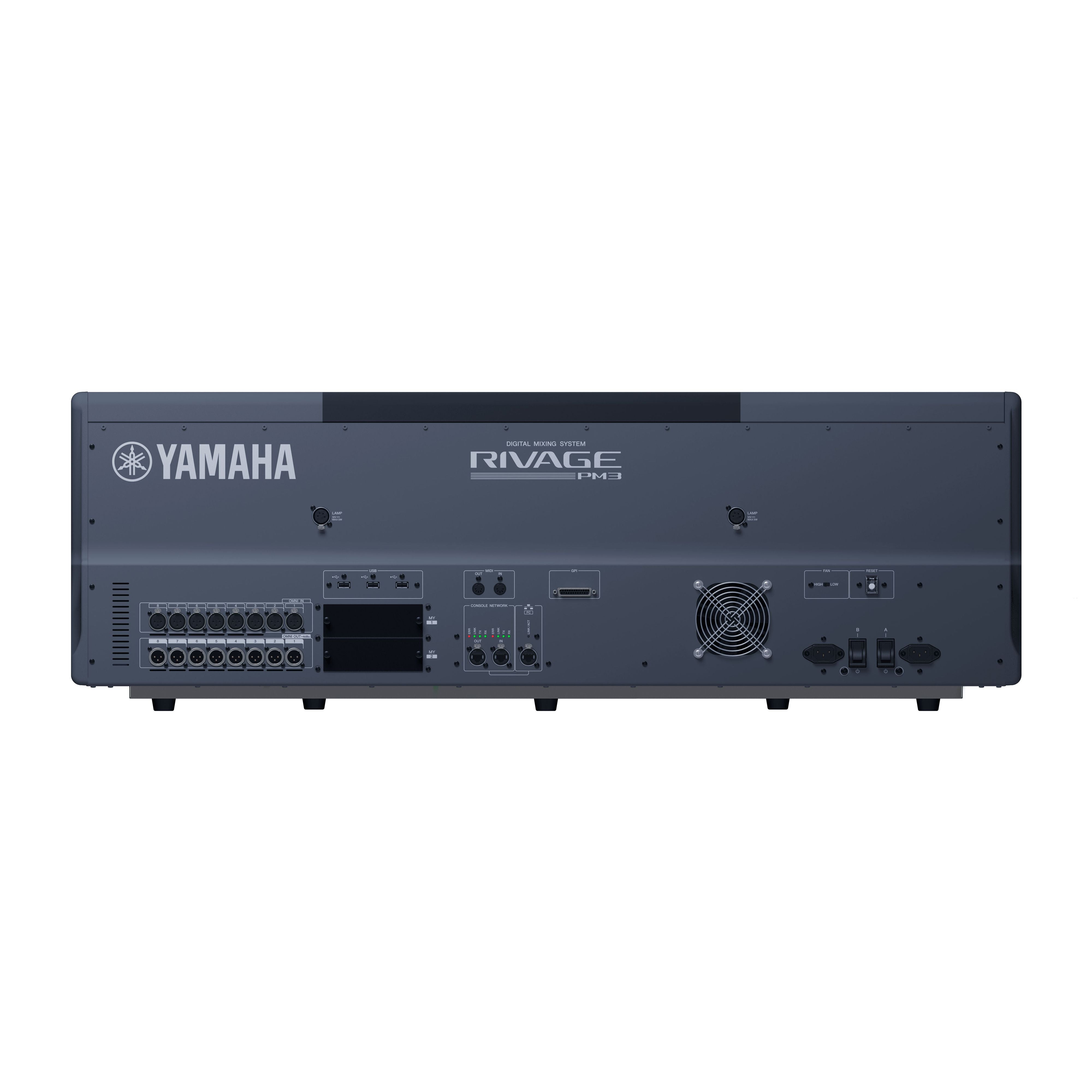

Control surface: CS-R3

The CS-R3 control surface is the core component of RIVAGE PM3 system, with 96 kHz processing. The console is the most compact mixer in RIVAGE PM series regarding the size and weight though the software and operation is almost the same as other RIVAGE PM series.

• Display: 15" touch panel x 1
• Faders: 38 (12+12+12+2)
• Selected Channel section: Dynamics, GAIN, HPF, EQ, PAN, Function Knob
• Custom Fader banks: 6 x 5 on each bay
• User Defined keys: 12 x 4 banks
• User Defined knobs: 1(4 x 4 banks can be assigned)
• Touch and Turn knobs: 1
• Analog I/O: 8 in / 8 out
• Slot: 2 MY slots
• Ports: GPI (8 in / 8 out), MIDI In/Out, 5 USB (1 for 2-track recording)
• Power supply: Dual redundant power supply built-in
• Power consumption: 200W
• Dimensions (WxHxD): 1,145 x 385 x 650mm (45.1" x 15.2" x 25.6")
• Net Weight: 38 kg (83.8 lbs)

This high-capacity, high-performance I/O rack is compatible with Yamaha CL and QL series consoles as well as the RIVAGE PM series. It features 32 analog inputs, 16 analog outputs, and eight digital AES/EBU outputs. The Rio3224-D2 connects directly to Dante digital audio networks, allowing flexible system configuration. Dual power supply units are built in for high reliability, and a character/graphic display offers easy visual confirmation.

• 32 analog inputs and 16 outputs, and 8 digital outputs.
• Redundant connections are supported with primary and secondary connectors. Daisy chain connections are also supported.
• Comprehensive display and local control of gain and other parameters.
• Dual power supply units are built in for high reliability.
• Power consumption: 120W
• Dimensions (WxHxD): 480 x 220 x 368mm (18.9" x 8.7" x 14.5")
• Net Weight: 13.5 kg (29.8 lbs)

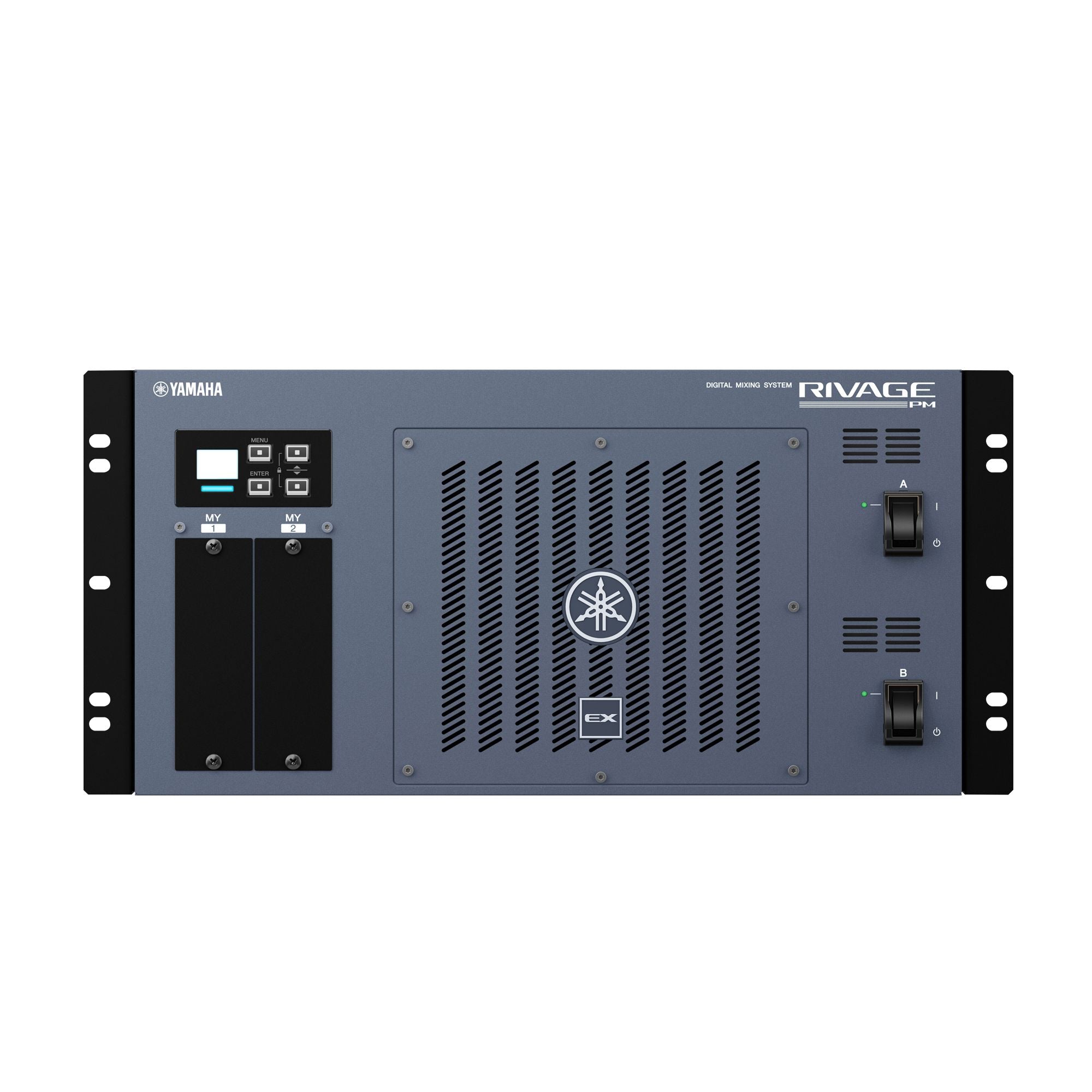

The DSP-RX is a powerful DSP engine that serves as the core for signal processing and system control required for the RIVAGE PM system. DSP-RX can be upgraded to DSP-RX-EX later by adding the DEK-DSP-RX kit.

• Compatible Control Surfaces: CS-R10, CS-R10-S, CS-R5, CS-R3
• Superior capability of processing digital audio signals of up to 120 input, 48 MIX, 24 MATRIX, and two STEREO channels.
• Four HY card slots that are capable of transmitting/receiving up to 256 ins/outs of digital audio signals/control signals.
• Two Mini-YGDAI slots to support various audio formats.
• Dual redundant power supply built-in
• Power consumption: 190W
• Dimensions (WxHxD): 480 x 220 x 491mm (18.9" x 8.7" x 19.3") (5U rack size)
• Net Weight: 19 kg (41.9 lbs)
