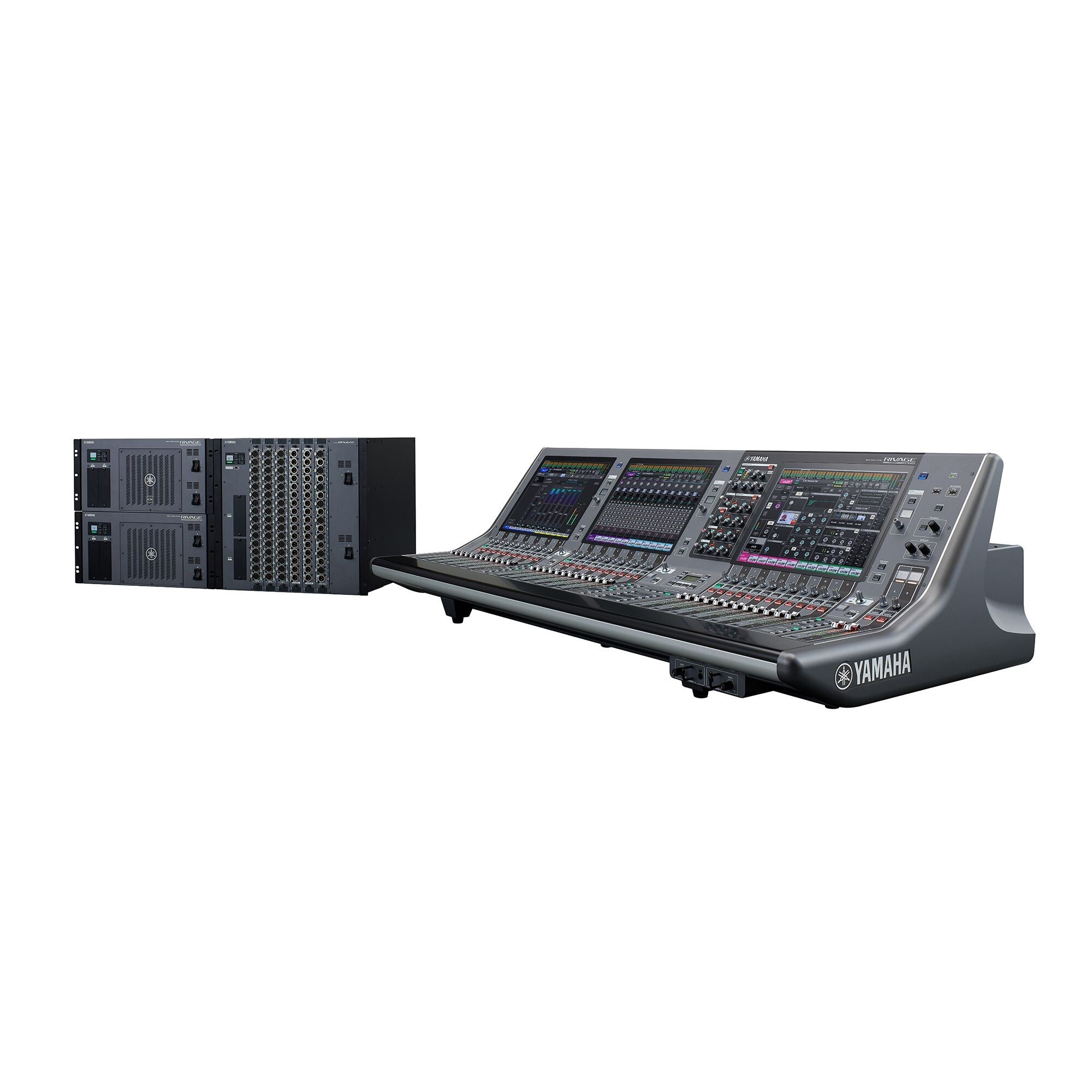

Yamaha Rivage PM5 Dante System - Dante 80/40, 16 AES Out and SRC Dante VSC bundle

Contact our sales team today to discuss your Yamaha Rivage needs!

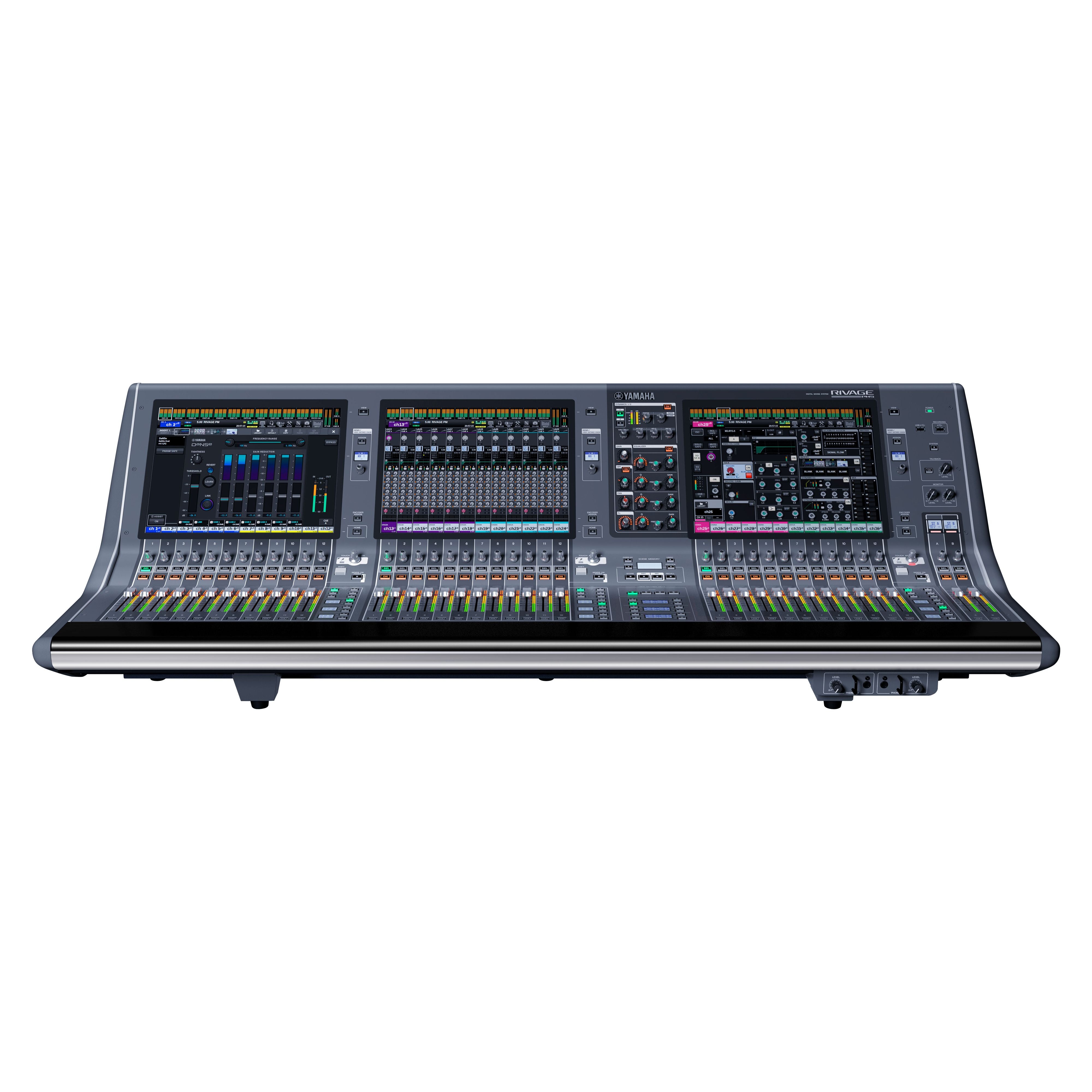

The CS-R5 control surface is the core component of RIVAGE PM5 system, with 96 kHz processing. The console has three touch screen and 12-faders bays for flexible setup and configuration.Touch panels are brought closer to the user, making them easier to reach. The weight is 42kg which is incredibly light.

• Display: 15" touch panel x 3
• Faders: 38 (12+12+12+2)
• Selected Channel section: Dynamics, GAIN, HPF, EQ, PAN, Function Knob
• Custom Fader banks: 6 x 5 on each bay
• User Defined keys: 12 x 4 banks
• Send/User Defined knobs: 3(4 x 4 banks can be assigned)
• Touch and Turn knobs: 3
• Analog I/O: 8 in / 8 out
• Slot: 2 MY slots
• AES/EBU: 4 in / 4 out (with SRC)
• Ports: GPI (8 in / 8 out), MIDI In/Out, 5 USB (1 for 2-track recording)
• Power supply: Dual redundant power supply built-in
• Power consumption: 300W
• Dimensions (WxHxD): 1,444 x 414 x 643mm (56.9" x 16.2" x 25.3")
• Net Weight: 42 kg (92.6 lbs)

This high-capacity, high-performance I/O rack is compatible with Yamaha CL and QL series consoles as well as the RIVAGE PM series. It features 32 analog inputs, 16 analog outputs, and eight digital AES/EBU outputs. The Rio3224-D2 connects directly to Dante digital audio networks, allowing flexible system configuration. Dual power supply units are built in for high reliability, and a character/graphic display offers easy visual confirmation.

• 32 analog inputs and 16 outputs, and 8 digital outputs.
• Redundant connections are supported with primary and secondary connectors. Daisy chain connections are also supported.
• Comprehensive display and local control of gain and other parameters.
• Dual power supply units are built in for high reliability.
• Power consumption: 120W
• Dimensions (WxHxD): 480 x 220 x 368mm (18.9" x 8.7" x 14.5")
• Net Weight: 13.5 kg (29.8 lbs)

The DSP-RX is a powerful DSP engine that serves as the core for signal processing and system control required for the RIVAGE PM system. DSP-RX can be upgraded to DSP-RX-EX later by adding the DEK-DSP-RX kit.

• Compatible Control Surfaces: CS-R10, CS-R10-S, CS-R5, CS-R3
• Superior capability of processing digital audio signals of up to 120 input, 48 MIX, 24 MATRIX, and two STEREO channels.
• Four HY card slots that are capable of transmitting/receiving up to 256 ins/outs of digital audio signals/control signals.
• Two Mini-YGDAI slots to support various audio formats.
• Dual redundant power supply built-in
• Power consumption: 190W
• Dimensions (WxHxD): 480 x 220 x 491mm (18.9" x 8.7" x 19.3") (5U rack size)
• Net Weight: 19 kg (41.9 lbs)
