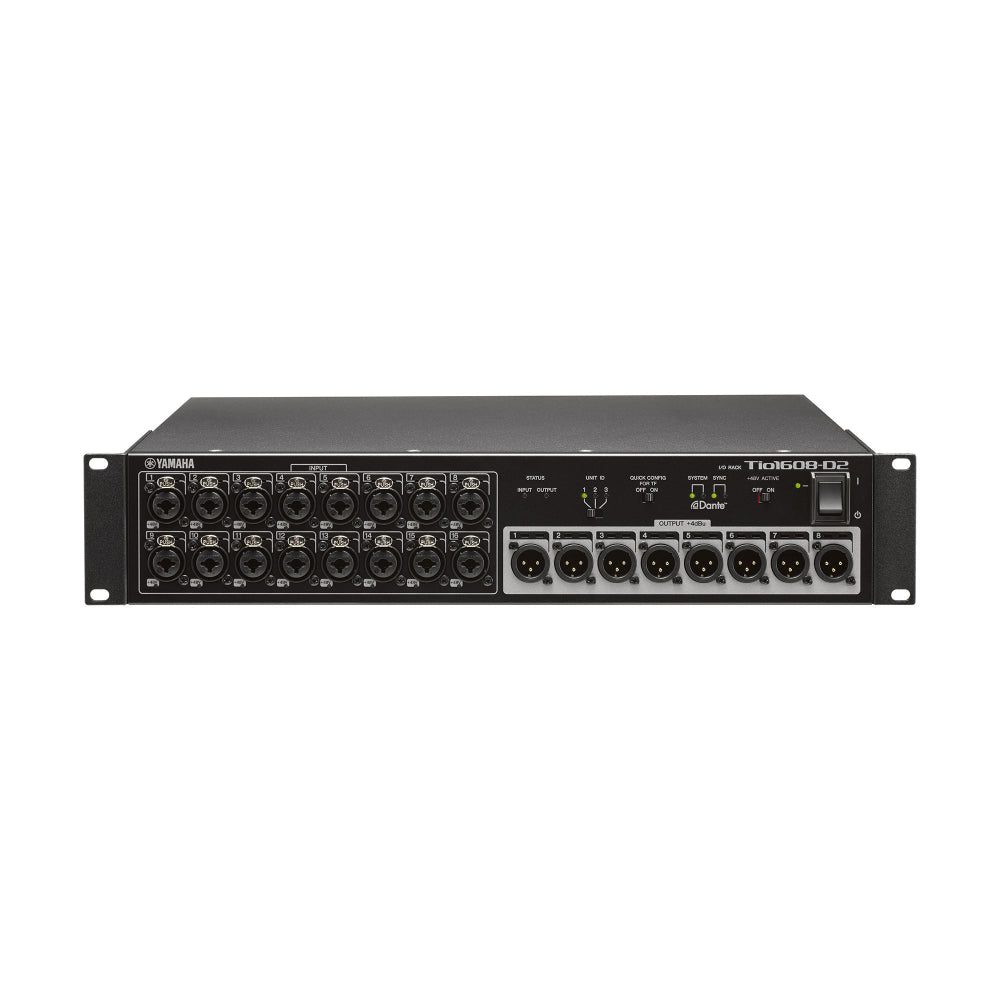

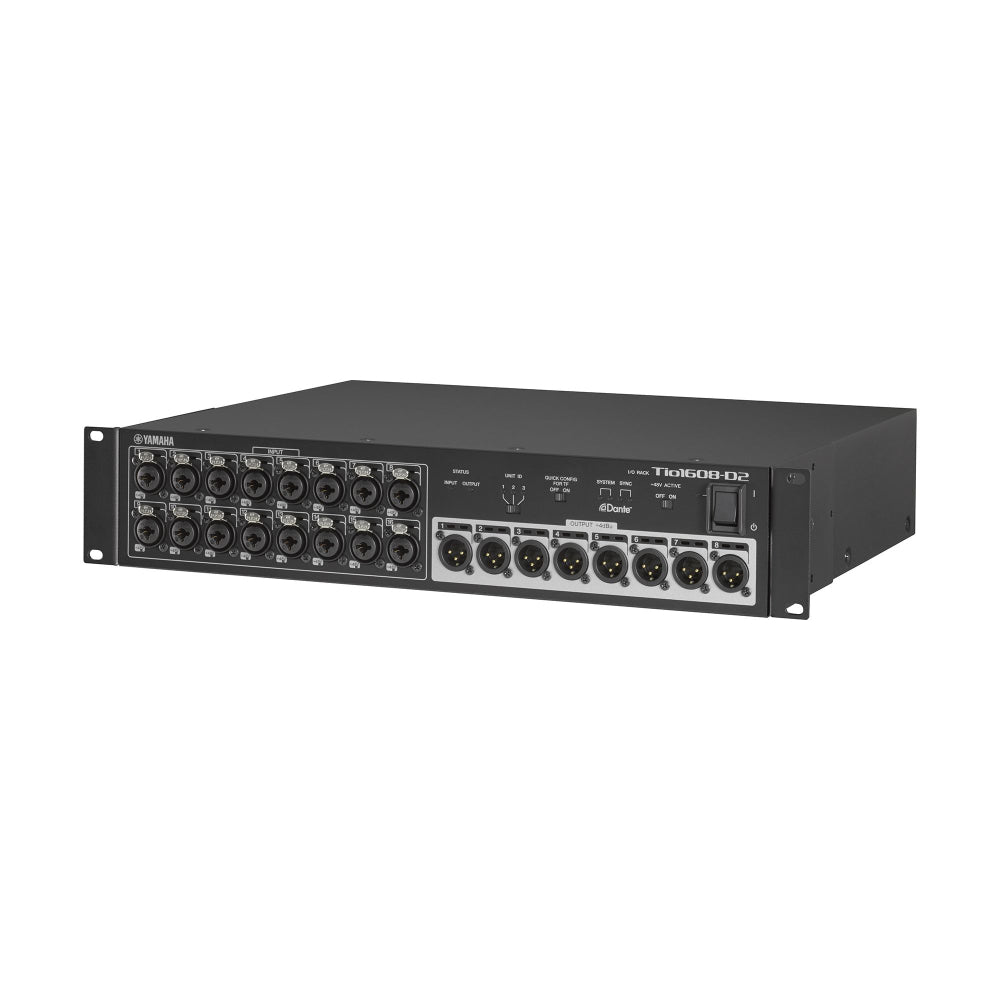

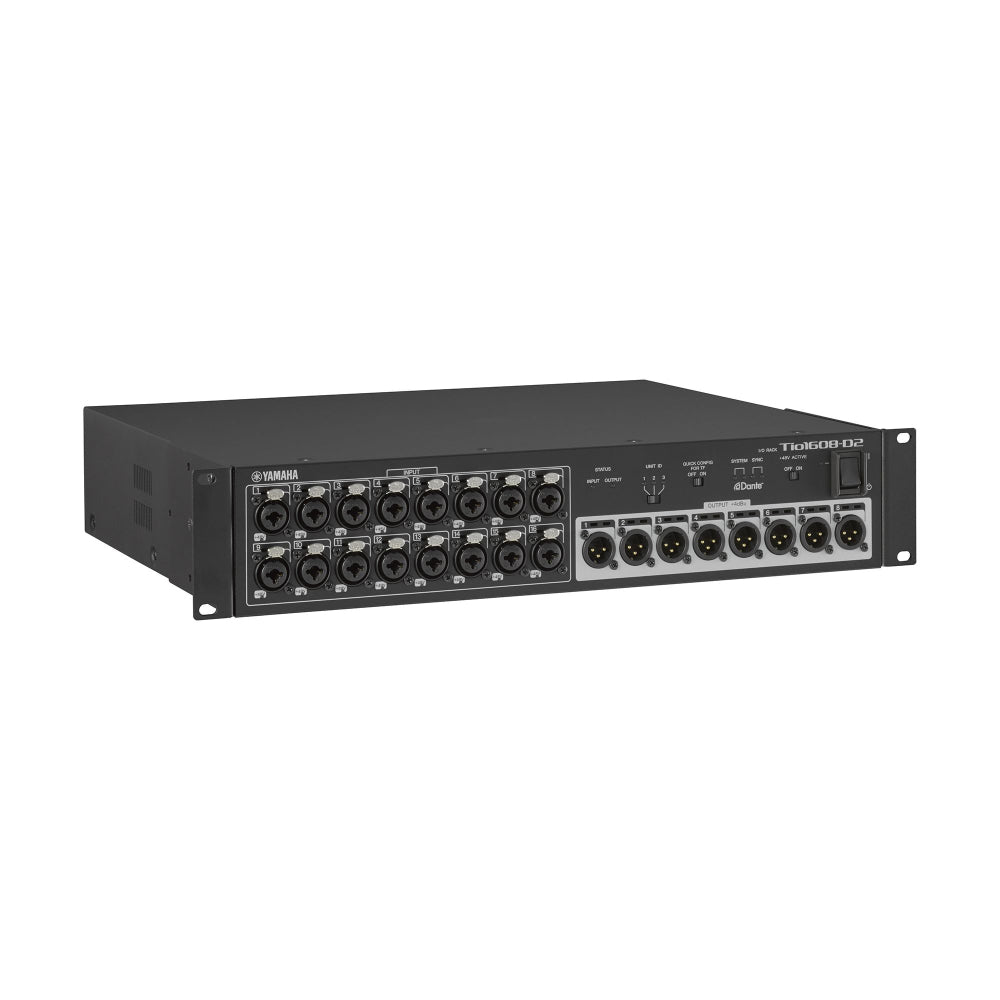

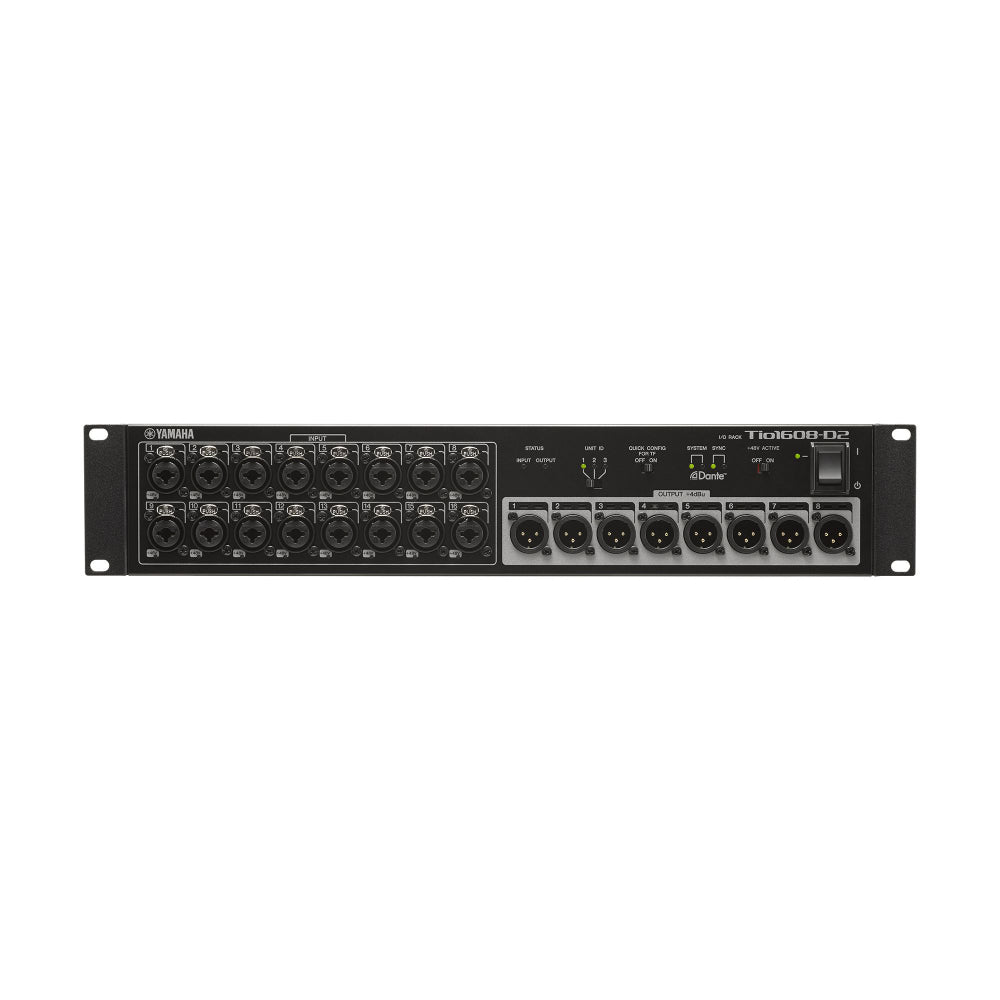

Yamaha TIO1608-D2 Dante Rack 16x8 Stage Box Interface
The Tio1608-D2 is a Dante-compatible I/O rack equipped with 16 mic/line inputs and 8 line outputs. It can control gain from TF Series and DM3 consoles remotely, allowing the construction of a simple stagebox system. The versatile Tio1608-D2 also supports 96k, making it perfect for use as an I/O rack in large installations with products such as the RIVAGE PM or DME7. Please note this is not suitable to work with the DM3S console.
The Dante audio network standard is utilized in the DM3 and TF series, as well as in the CL and QL digital mixers. These consoles can be freely combined with the Tio1608-D2 or an R series I/O rack to create a system that matches the required scale and budget. Patching can be enabled via “Dante Controller” while Remote HA can be controlled by “R Remote” software.

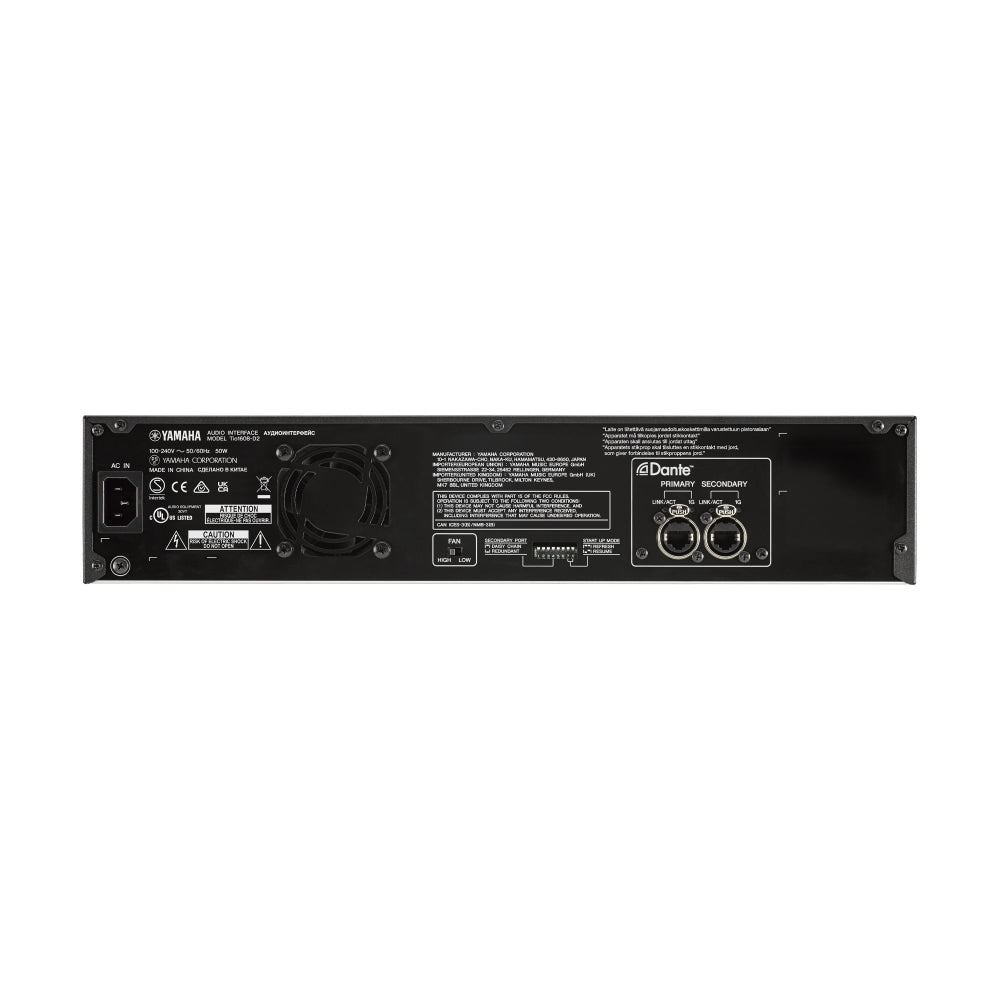

*Please note that Remote HA on the Tio1608-D2 can be implemented only via the Primary port. Remote HA control of the Tio1608D2 is not available on the secondary network, even when using the product in combination with a TF or CL/QL console.
A stagebox that enhances the convenience of your console
The Tio1608-D2 is the ideal stagebox for use with TF Series or DM3. The TF Series can use the optional NY64-D expansion card to connect to up to three Tio1608-D2 units, while DM3 can connect to a single unit. Connecting the console and Tio1608-D2 unites with a lightweight, durable CAT5e Ethernet cable in a daisy chain provides low-latency, high quality sound transmission without the time-consuming transport and installation required when using analog snakes.
Dante High Reliability Network Audio Protocol
Dante has been adopted by leading manufacturers and professionals in the sound reinforcement industry for its low jitter, low latency, and high sampling accuracy. Using the Tio1608-D2 you can easily configure a high-performance Dante stagebox system with little or no IT networking knowledge. Thanks to the flexibility of the Dante network protocol, TF Series or DM3 can be connected to an extensive range of Dante-enabled equipment such as R Series I/O racks.
Fast, easy configuration
TF Series and DM3 are equipped with functions for automatic configuration of network settings and audio patching connections, making system configuration easy. After configuring the unit ID and QUICK CONFIG switches from the front panel of the Tio Rack, using the QUICK CONFIG function of the TF Series or the AUTO CONFIG function of the DM3 allows you to complete setup simply by connecting the console and Tio Rack with an Ethernet cable. Turn on the power and you're ready to go!
*Set the QUICK CONFIG switch to ON when using Quick CONFIG on the TF Series, and to OFF when using AUTO CONFIG on the DM3.
Simple and Flexible Input Selection
Once the basic configuration is completed you can easily assign inputs to best suit your system setup. All inputs can be assigned uniformly to the Tio Rack in an instant from the TF Series INPUT screen menu or the PATCH screen on a DM3. Users can also change each input to receive signal from multiple locations, allowing effective use of all inputs.
Recallable D-PRE preamplifiers
The Tio1608-D2 inherits the natural, musical sensibility that we pursued in the development of the TF Series. Mechanical construction, circuit board layout, power supply, grounding, and parts selection have all been executed with meticulous attention to detail and quality, combined with exhaustive performance and listening tests at each stage of development. The Tio1608-D2 features the same recallable D-PRE microphone preamplifiers as the TF Series to provide a consistent, natural, musical sound throughout the entire system.
System example with DM3
Tio1608-D2 allows you to easily connect a DM3 digital mixer system. System setup uses a Plug In & Play method. Simply connect Cat5e cable, select the device IDs and the system is ready. Remote HA control is available via Cat5e. StageMix App allows wireless remote control of the console from the arena, the stage or the audience etc.
