Zoom H5 Handy Audio Recorder

SKU: FXR005
$445.00 $479.00
In stock: 2
NOTIFY ME WHEN BACK IN STOCK
By Zoom
Description

X/Y recording allows you to cover a wide area yet still capture sound sources in the center with clarity and definition, making it ideal for all types of live stereo recording. The XYH-5 X/Y microphone capsule included with the H5 provides two matched unidirectional condenser microphones set at a 90 degree angle. These are housed within an advanced shockmount that employs rugged external mic wires and rubberized material to isolate the unit from the H5 body and thus minimize vibration and handling noise.  The design of the XYH-5 also allows the H5 to handle louder sounds than any other Handy Recorder model: 140 dB SPL, to be precise—equivalent to the sound of a jet aircraft from less than 200 feet away—enabling you to capture sounds louder, closer, and cleaner than you ever could before.

In addition to standard transport controls (stop, play/pause, record, rewind and fast-forward), the front panel of the H5 offers dedicated record arming buttons for each track, which double as mute switches during playback. A Hold switch disables all front panel buttons to prevent accidental operation during recording. The H5 can be attached to a camera strap or, with the use of our optional Hot Shoe mount, mounted directly to a DSLR or camcorder.

The H5 also provides everything you need to connect with the outside world. Dual combo XLR/TRS inputs that can handle both mic- and line-level signals allow you to connect external microphones and line-level devices like mixers, portable music players, effects processors and electronic keyboards—even electric guitars or basses equipped with active electronics. Each H5 input has its own dedicated gain control knob, located beneath a protective bar that prevents accidental movement during handling. The supplied XYH-5 X/Y capsule also provides a secondary input for connecting stereo mic- or line-level signal via a ⅛" mini phone jack. The H5 supports a +4 dB (professional) input level and utilizes the same high-quality preamps as our flagship H6, ensuring great-sounding recordings in all sonic environments.

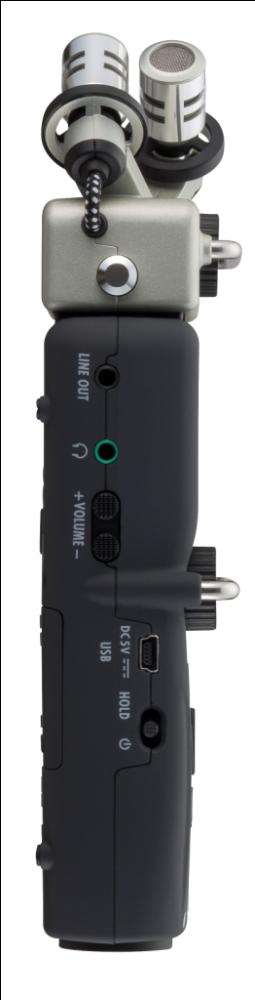

There are lots of output options as well. A dedicated Line Out with adjustable volume allows you to send a stereo audio output from the H5 to the mic input of a video camera or other device without the need for an attenuator cable. In addition, there's a separate headphone output with a dedicated volume control. You can use both outputs simultaneously to route audio to your DSLR while monitoring over headphones. There's also a built-in speaker for fast access playback, and a USB port which allows the H5 to be used as an audio interface for your computer or iPad.

SPECS

GENERAL
Recording media:

SD card: 16MB to 2GB , SDHC card: 4GB to 32GB

Display:

Backlit LCD (128 x 64 pixels)

INPUTS
INPUTS L/R [XYH-5 X/Y mic]:

Mic type:   Unidirectional
Sensitivity:   -45 dB, 1 kHz at 1 Pa
Input gain:   -∞ to 52 dB
Max sound pressure input: 140 dB SPL

MIC/LINE IN :

Connector:   1/8" stereo mini jack
Input gain:  - ∞ to 52 dB
Input impedance:  2 k Ω or more
Plug-in power:  2.5V supported
Backup recording: -12dB lower than set L/R input gain

INPUTS 1/2:

Connectors:    XLR / TRS combo jacks
    (XLR: Pin 2 hot / TRS: Tip hot)
Input gain (PAD OFF): -∞ to 55.0 dB
Input gain (PAD ON): -∞ to 35.0 dB
Input impedance:  1.8 k Ω or more
Max input level:  +22 dBu (PAD ON)
Phantom power:  +12V /+24V /+48V
Equivalent Input Noise (EIN): -120 dBu or less

OUTPUTS
LINE OUT :

Connector:    1/8" stereo mini jack
Rated output level:   -10 dBm
Output load impedance: 10k Ω or more

PHONE OUT :

Connector:    1/8" stereo mini jack
Output Level:    20 W +20 W into 32 Ω load

Built-in speaker:

400mw 8 Ω mono

RECORDING FORMATS
STEREO MODE:

WAV (BWF-compliant)
Sampling frequency:   44.1/48/96 kHz
Bit rate:    16/24 (Stereo)
Maximum simultaneous recording tracks: 2

MP3
Sampling frequency:  44.1kHz
Bit rate: 48/56/64/80/96/112/32/160/192/224/256/320kbps

MULTITRACK MODE:

WAV (BWF-compliant)
Sampling frequency: 44.1/48 kHz
Bit rate: 16/24 (Mono/Stereo)
Maximum simultaneous recording tracks: 6 (L/R + INPUT 1/2 + L/R backup)

USB
Mass Storage Class operation:

Class: USB 2.0 High Speed

Audio Interface operation: Multitrack mode:

Class: USB 2.0 High Speed
Sampling frequency: 44.1/48kHz
Bit rate: 16/24 bit
Inputs / Outputs: 4 / 2

Audio Interface operation: Stereo mode:

Class: USB 2.0 Full Speed
Sampling frequency: 44.1/48kHz
Bit rate:  16 bit
Inputs / Outputs: 2 / 2

USB bus powered operation  possible
(iPad operation supported in Stereo mode only)

POWER REQUIREMENTS


AA size (LR6) battery x 2
AC adapter: AD-17 (DC5V/1A/USB-type) (optional)
USB bus power
